Hyperline KR
PTFE-lined hose for automotive and general purpose applications
Hyperline KR is a high-performance, lightweight, and highly flexible PTFE-lined hose designed for demanding applications where space, movement, and chemical resistance are critical. Its construction features a smooth bore PTFE liner with an external convoluted design, reinforced with a 304 stainless steel wire braid and an integral EPDM rubber cover.
This unique combination offers excellent resistance to chemicals, temperature extremes, and mechanical stress, making it ideal for applications in pharmaceutical, food, chemical processing, and general industrial sectors. The EPDM rubber outer layer enhances durability, protects against abrasion, and provides an easy-clean surface, while the smooth bore ensures low friction and high flow rates. Hyperline KR is especially well-suited for dynamic flexing applications, offering a long service life even under continuous movement.
Features and Benefits
- New improved kink resistance
- Smooth bore yet highly flexible hose – a unique combination
- Excellent chemical resistance – inert to all but a handful of uncommon chemicals
- Self-cleaning – product does not adhere to the tube wall
- Hygienic – manufactured from FDA-approved PTFE
- Low flow-resistance – flow rates are more than twice those of conventional convoluted hose
- Durable – tough outer braid protects against abrasion and damage
- Heat-resistant – usable up to 230°C, dependent on application/specification
- Vacuum resistant – usable with full vacuum (up to 1″ size, max 130°C)
- Sizes – 1/2″ up to 2″ nb larger sizes upon request.
Technical Summary
| Nominal bore size | 6 – 25 mm |
| Nominal bore size | 0.25 – 1 in |
| Outside diameter | 9 – 31.7 mm |
| Outside diameter | 0.354 – 1.25 in |
| Max. operating pressure | 88 bar |
| Max. operating pressure | 1280 psi |
| Certification and compliance | 3.1 Traceability, EN16643:2016, FDA (materials), SAE J1737, TS 16949:2016 |
| Bend radius | 19 – 150 mm |
| Bend radius | 0.75 – 6 in |
| Braid type | None |
| Cover | None |

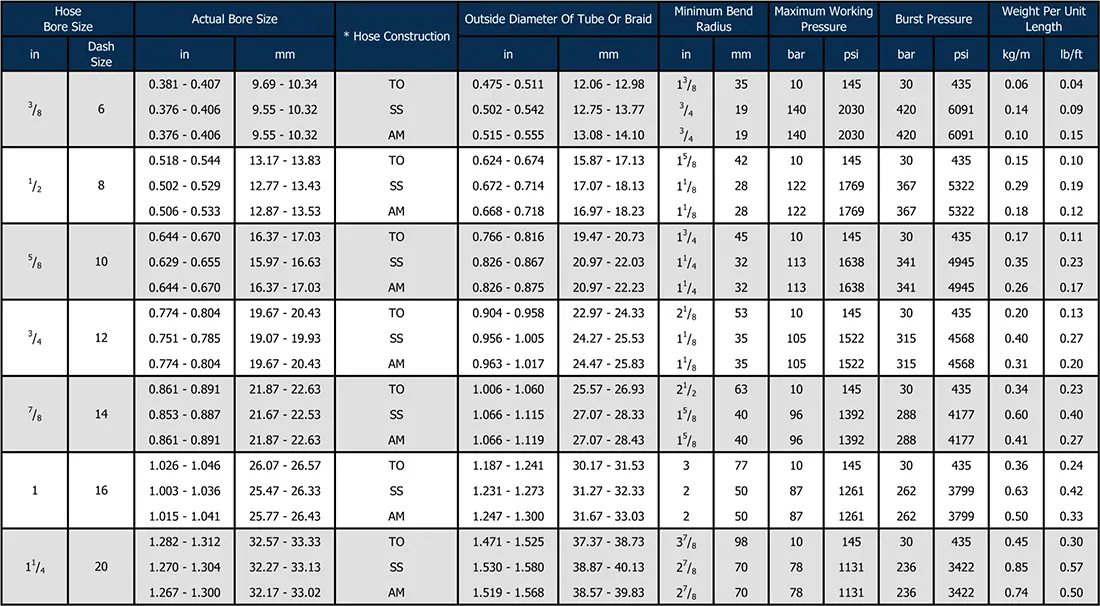

*Hose construction – (TO) tube only, (SS) stainless steel, (AM) aramid.
Temperatures vs Pressure
- Due to its extremely strong construction, Hyperline KR has outstanding resistance to temperature and pressure, much higher than that of conventional convoluted PTFE lined hose.
Maximum Working Pressure (MWP) Variation With Temperature
Temperature and pressure limitations for the various sizes and specification variations of Hyperline KR are depicted on the graph.
LINERS
Natural
This liner can be used when there is no risk of electrostatic charge
Anti-Static
This liner is essential in applications where there is a risk of electrostatic charge
HPG
This liner is ideal for high pressure gas applications or testing procedures are above 100 bar
AS Liner
This liner consists of an anti-static internal layer of the PTFE with a natural outer layer, which provides the required static discharge properties.
BRAIDS
Stainless Steel
High pressure, high temperature applications
Aramid
Lightweight, high pressure applications
PPS
Ultra lightweight for low pressure applications
Combination Braids
Combination of different braid materials to provide completely bespoke solutions.
COVERS
PVC
Working range -10°C (-14°F) to +60°C (+140°F)
Nylon / Arnitel
Working range -40°C (-40°F) to +120°C (+248°F)
Sarlink and Hytrel
Working range -40°C (-40°F) to +125°C (+257°F)
Silicone
Working range -73°C (-100°F) to +204°C (+400°F)
