Novaporte VSP 273
Safety Valve
Watertight access doors
Technical Specifications

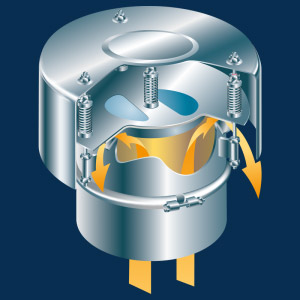

The VSP 273 pressure/vacuum safety valve protects silos and hoppers against overpressure and occasional vacuum caused by :
- Pneumatic unloading
- Clogged dust filter
- Fermentations
- Temperature variations
- Factory-set :
- Pressure: 500mm H2O - Vacuum: 20mm H2O
- Acceptable maximums :
- Pressure: 600mm H2O - Vacuum: 120 mm H2O
Option
- Anti-volatile grille

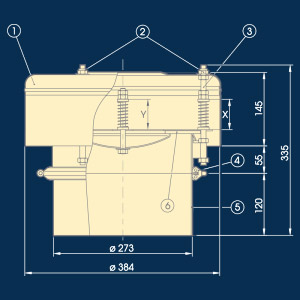

| A | B | C | D | |
|---|---|---|---|---|
1 | Pression Over pressure | Depression Under pressure | ||
2 | X mm | mm H2O | Y mm | mm H2O |
3 | 65 | 600 | 50 | 120 |
4 | 75 | 500 | 63 | 90 |
5 | 85 | 400 | 80 | 50 |
6 | 92 | 20 | ||
