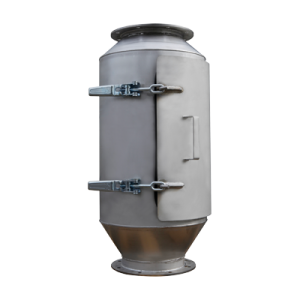

Cylindrical magnets
VIGIFLUX© Magnetic separators
Section Menu
Technical Specifications
- Permanent magnet: manual cleaning
- Stainless steel construction

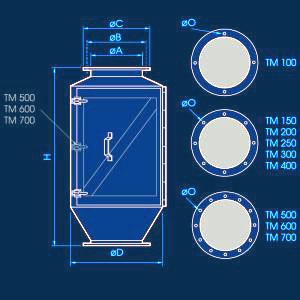

| A | B | C | D | E | F | G | H | I | J | K | |
|---|---|---|---|---|---|---|---|---|---|---|---|
1 | TM | ØA | ØB | ØC | ØD | H | J | K | L | ØO | Ox |
2 | 100 | 100 | 139 | 165 | 220 | 580 | 112 | 435 | 320 | 9.5 | x4 |
3 | 150 | 150 | 200 | 225 | 275 | 655 | 139.5 | 515 | 380 | 11.5 | x8 |
4 | 200 | 198 | 241 | 275 | 345 | 760 | 175.5 | 625 | 455 | 11.5 | x8 |
5 | 250 | 248 | 292 | 325 | 430 | 850 | 218 | 750 | 550 | 11.5 | x8 |
6 | 300 | 298 | 366 | 295 | 485 | 880 | 245.5 | 840 | 630 | 11.5 | x8 |
7 | 400 | 400 | 432 | 484 | 600 | 1100 | 604 | 1120 | 940 | 11.5 | x12 |
8 | 500 | 500 | 532 | 584 | 780 | 1200 | 736 | 1335 | 1041 | 11.5 | x12 |
9 | 600 | 600 | 642 | 700 | 935 | 1450 | 830 | 1575 | 1142 | 14 | x12 |
Other technical data.

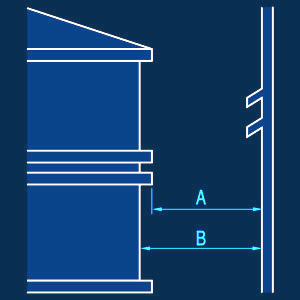

| A | B | C | D | E | |
|---|---|---|---|---|---|
1 | TM | Capacity | Weight | A | B |
2 | 100 | 10m3/h | 23 kg | 37.5 mm | 42 mm |
3 | 150 | 35m3/h | 38 kg | 42.5 mm | 50 mm |
4 | 200 | 85m3/h | 70 kg | 40 mm | 52.5 mm |
5 | 250 | 130m3/h | 115 kg | 65 mm | 77.5 mm |
6 | 300 | 200m3/h | 145 kg | 62.5 mm | 74.5 mm |
7 | 400 | 260m3/h | 275 kg | 75 mm | 90 mm |
8 | 500 | 310m3/h | 550kg | 114 mm | 129 mm |
9 | 600 | 400m3/h | 900 kg | 142 mm | 157 mm |
