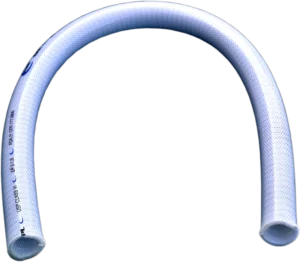

CX Platinum Silicone Hose

Heavy Duty, High Flex (pressure and vacuum)

CX

The CX heavy duty, high flex silicone hose from APT Systems is a premium-grade solution engineered specifically for the platinum pharma and food range, catering to industries with the most stringent hygiene and performance standards.

Designed to handle both pressure and vacuum applications, this hose features exceptional flexibility without compromising structural integrity, making it ideal for dynamic installations and demanding processing environments.

Manufactured using platinum-cured silicone, it ensures ultra-low extractables, excellent biocompatibility, and compliance with key regulatory standards such as FDA, USP Class VI, and BfR. The CX hose’s heavy-duty construction delivers superior durability and longevity even under extreme temperature ranges, while maintaining full cleanability and sterilization compatibility, including CIP (Clean-In-Place) and SIP (Steam-In-Place).

Trusted across pharmaceutical, biotechnology, and high-purity food sectors, it exemplifies APT Systems’ commitment to innovation, safety, and operational excellence.

Features Of The Platinum Range

  • 4 metre lengths as standard (other lengths available on request)
  • 4 ply polyester with stainless steel wire helix
  • Smooth cover and smooth liner
  • Suitable for pressure or vacuum
  • Coloured covers available
  • Extruded liners
  • Hand built liners
  • -600C to +1800C (up to +2600C upon request)
  • Tagging – each hose is individually and uniquely tagged
  • Available loose or in assemblies
  • Corporate branding available
  • Suitable for CIP cleaning
  • Fittings available to suit
  • Material certification available
  • Odourless – tasteless – non toxic
  • Safety factor 4:1
  • Not a steam hose

Approvals

  • Manufactured to ISO 9002
  • FDA Regulation CFR 177.2600
  • ISO 10993 Section 5-6-10-11
  • USP Class VI
  • European Pharmacopeia 3.1.9
  • France Journal Officiel. Brochure 1227
  • Italy Gazetta Officiale – 1973
  • BfR

CX - E/H*

SIZE IDmm OD +/- 0.6mm WALL BEND RADIUS ** WP 20C BAR **BP 20C BAR
1/2" 12.7 25.1 6.2 45 10 40
3/4" 19.05 31.4 6.2 65 10 40
1” 25.4 37.8 6.2 80 10 40
1 1/4” 31.8 44.2 6.2 120 10 40
1 1/2” 38.1 50.5 6.2 150 10 40
2” 50.8 63.2 6.2 180 10 40

*E: extruded liner *H: hand wrapped liner

** These are guide figures and should be confirmed by the manufacturer of the Assembly. [Re. Fitting design]
Pressure decrease by1% for every 10C above 1000C.

63141 (APT450/60) – Platinum Grade Rubber Compound Specification

Characteristics:

Stable over a range of temperatures:   –55o C to +225o C.
Type AFNOR T 40002:   MVQ
Natural Colour:   Transparent
Specific Gravity:   1.16

Mechanical properties after post curing 4 hours @ 200Deg C:

Shore A Hardness:   60
Tensile Strength, N/mm²:   11
Elongation at break, %:   630
Tear Strength, N/mm:   42
Comp set 22hrs @ 175°C:   15%

Key Features

  • Highly transparent
  • Good compromise of mechanical properties.
  • Very good resistance to oxidising agents (Oxygen – Ozone & U.V)
  • Very good behaviour for all sterilisation modes
  • Very good release properties
  • Chemically Inert
  • Excellent Sterilisation behaviour

Regulations

Tested in conformity with the requirements included in the chapter 3-1-9: silicone elastomer for closures and tubing and is complying with the specifications required by the European Pharmacopoeia in force to date.
(Certified and signed in Saint Fons as fully compliant with European Pharmacopoeia).

Elastomeric samples of 63141 were submitted under good laboratory practices to the biological reactivity tests designed for polymeric material described in the United States Pharmacopoeia (USP XXVI-NF21) Meets USP XXVI Class VI requirements (Certified and signed in Saint Fons as fully compliant with USP XXVI-NF21)

Conform to the described experimental lists requirements of the French, German, and American Regulations (Journal Official Brochure 1227, BfR section XV A FDA CFR21-Part 177.2600). For food contact materials.

Applications

  • Biopharmaceutical manufacturing
  • Pharmaceutical processing
  • Load cells
  • Filling lines
  • Process lines
