TO Platinum Silicone Hose

Tubing Only

TO

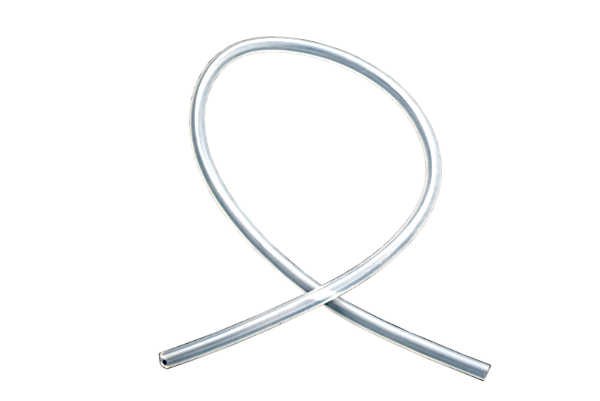

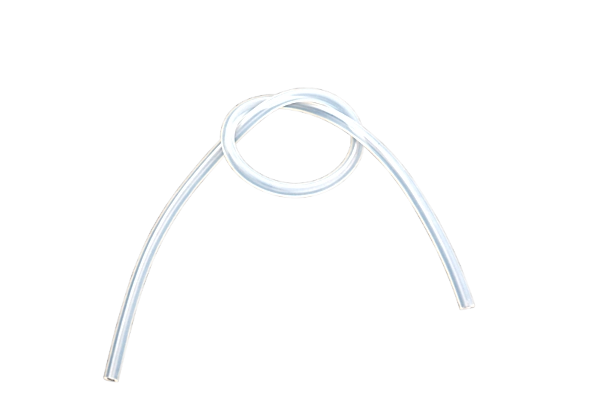

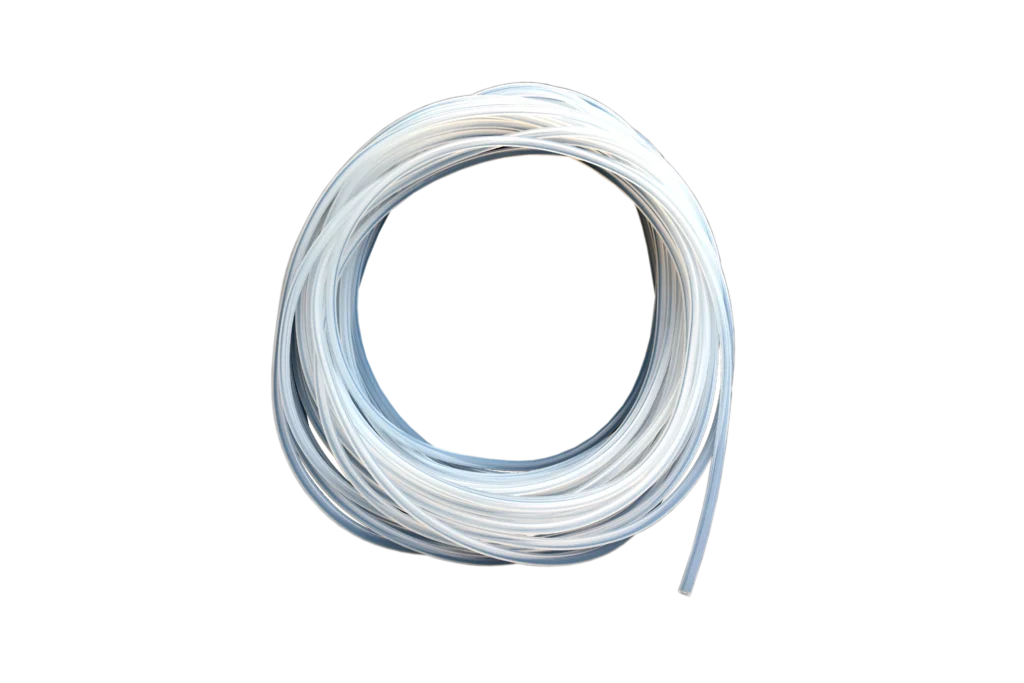

The TO tubing only silicone hose from APT Systems is a core offering in the platinum pharma and food range, designed for low-pressure transfer applications where maximum purity and flexibility are essential.

Made from platinum-cured silicone, this hose features a smooth, non-reinforced construction that ensures excellent biocompatibility and ultra-low extractables, meeting the highest industry standards including FDA, USP Class VI, and BfR.

Its lightweight, highly flexible design makes it ideal for gravity feeds, peristaltic pump use, and other delicate transfer operations in pharmaceutical, biotech, and food processing environments.

With full compatibility for CIP (Clean-In-Place) and SIP (Steam-In-Place) sterilization, the TO hose offers a clean, reliable solution for sanitary applications where reinforcement is not required. APT Systems’ TO tubing represents simplicity, purity, and performance in a single streamlined product.

Features Of The Platinum Range

  • 4 metre lengths as standard (other lengths available on request)
  • 4 ply polyester with stainless steel wire helix
  • Smooth cover and smooth liner
  • Suitable for pressure or vacuum
  • Coloured covers available
  • Extruded liners
  • Hand built liners
  • -600C to +1800C (up to +2600C upon request)
  • Tagging – each hose is individually and uniquely tagged
  • Available loose or in assemblies
  • Corporate branding available
  • Suitable for CIP cleaning
  • Fittings available to suit
  • Material certification available
  • Odourless – tasteless – non toxic
  • Safety factor 4:1
  • Not a steam hose

Approvals

  • Manufactured to ISO 9002
  • FDA Regulation CFR 177.2600
  • ISO 10993 Section 5-6-10-11
  • USP Class VI
  • European Pharmacopeia 3.1.9
  • France Journal Officiel. Brochure 1227
  • Italy Gazetta Officiale – 1973
  • BfR

63141 (APT450/60) – Platinum Grade Rubber Compound Specification

Characteristics:

Stable over a range of temperatures:   –55o C to +225o C.
Type AFNOR T 40002:   MVQ
Natural Colour:   Transparent
Specific Gravity:   1.16

Mechanical properties after post curing 4 hours @ 200Deg C:

Shore A Hardness:   60
Tensile Strength, N/mm²:   11
Elongation at break, %:   630
Tear Strength, N/mm:   42
Comp set 22hrs @ 175°C:   15%

Key Features

  • Highly transparent
  • Good compromise of mechanical properties.
  • Very good resistance to oxidising agents (Oxygen – Ozone & U.V)
  • Very good behaviour for all sterilisation modes
  • Very good release properties
  • Chemically Inert
  • Excellent Sterilisation behaviour

Regulations

Tested in conformity with the requirements included in the chapter 3-1-9: silicone elastomer for closures and tubing and is complying with the specifications required by the European Pharmacopoeia in force to date.
(Certified and signed in Saint Fons as fully compliant with European Pharmacopoeia).

Elastomeric samples of 63141 were submitted under good laboratory practices to the biological reactivity tests designed for polymeric material described in the United States Pharmacopoeia (USP XXVI-NF21) Meets USP XXVI Class VI requirements (Certified and signed in Saint Fons as fully compliant with USP XXVI-NF21)

Conform to the described experimental lists requirements of the French, German, and American Regulations (Journal Official Brochure 1227, BfR section XV A FDA CFR21-Part 177.2600). For food contact materials.

Applications

  • Biopharmaceutical manufacturing
  • Pharmaceutical processing
  • Load cells
  • Filling lines
  • Process lines
